Productdetails:
|

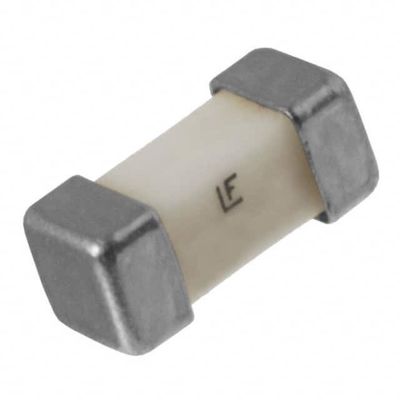

| Artikelnummer: | 0452004.MRL | Fabrikant: | Littelfuseinc. |
|---|---|---|---|
| Beschrijving: | MNT 4A 125VAC/VDC 2SMD VAN DE ZEKERINGSbrd | Categorie: | Zekeringen |
| Reeks: | NANO ² ® 452 | ||
| Hoog licht: | 4A Circuit Protection Fuses,SMD Circuit Protection Fuses,0452004.MRL |
||
| Series | NANO²® 452 |
|---|---|
| RoHS | RoHS |
| Color | - |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Part Status | Active |
| Melting I²t | 34.4 |
| Mounting Type | Surface Mount |
| Response Time | Slow Blow |
| Package / Case | 2-SMD, Square End Block |
| Approval Agency | CSA, PSE, UR |
| Size / Dimension | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 4 A |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 50A |
