Productdetails:
|

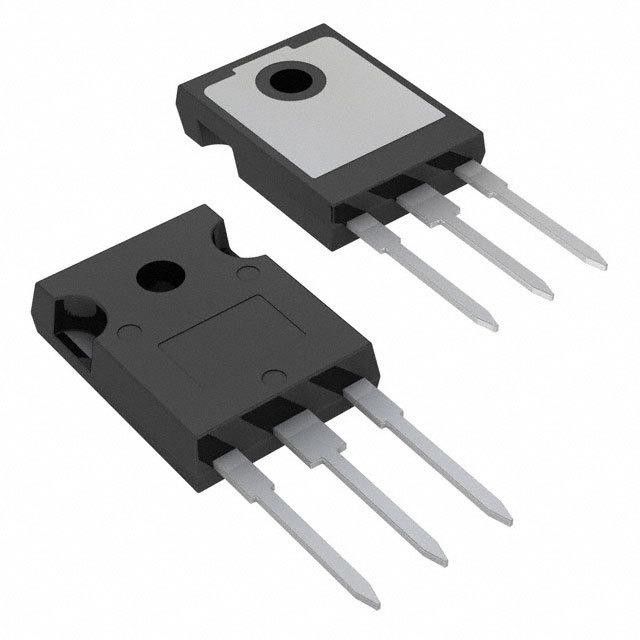

| Artikelnummer: | IRG4PC50FDPBF | Fabrikant: | Infineon Technologies |
|---|---|---|---|
| Beschrijving: | IGBT 600V 70A 200W TO247AC | Categorie: | De transistors - IGBTs - kiezen uit |
| Familie: | De transistors - IGBTs - kiezen uit |
| Part Status | Active |
|---|---|
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 70A |
| Current - Collector Pulsed (Icm) | 280A |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 39A |
| Power - Max | 200W |
| Switching Energy | 1.5mJ (on), 2.4mJ (off) |
| Input Type | Standard |
| Gate Charge | 190nC |
| Td (on/off) @ 25°C | 55ns/240ns |
| Test Condition | 480V, 39A, 5 Ohm, 15V |
| Reverse Recovery Time (trr) | 50ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
