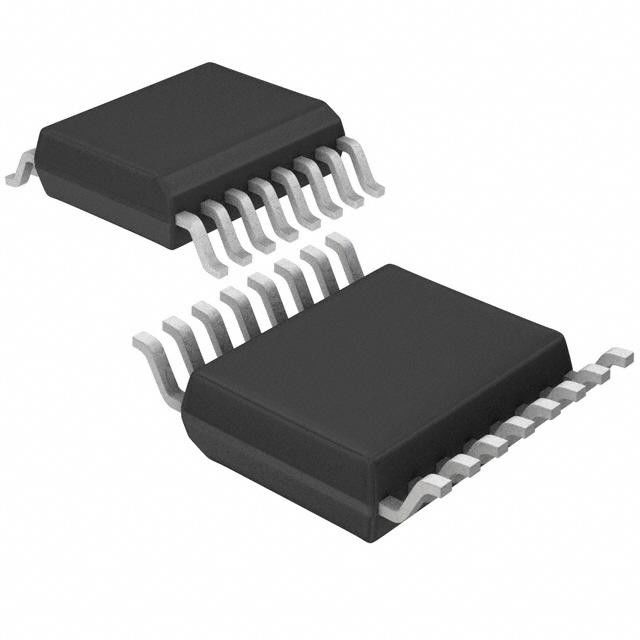

Productdetails:
|
| Artikelnummer: | ADUM7441CRQZ | Fabrikant: | Analog Devices Inc. |
|---|---|---|---|
| Beschrijving: | DGTL ISO 1KV 4CH GEN PURP 16QSOP | Categorie: | Digitale isolatoren |
| Familie: | Digitale isolatoren | Reeks: | iCoupler® |
| Part Status | Active |
|---|---|
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 3/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 1000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 50ns, 50ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
