Productdetails:
|

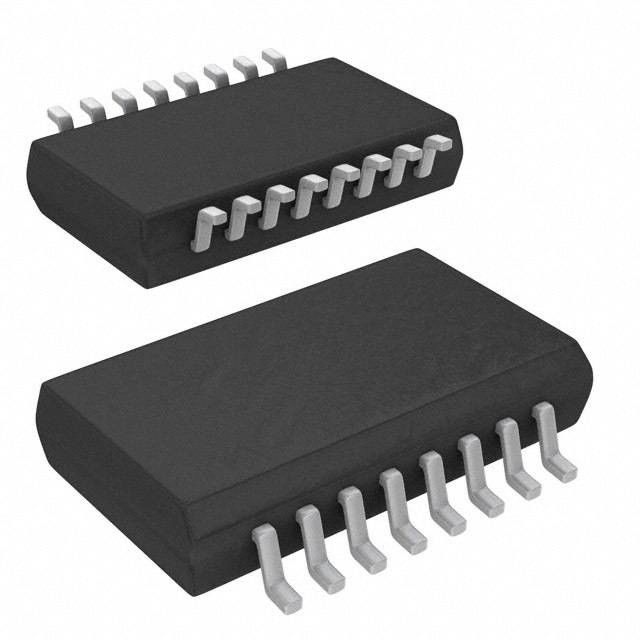

| Artikelnummer: | ADUM1400WSRWZ | Fabrikant: | Analog Devices Inc. |
|---|---|---|---|
| Beschrijving: | DGTL ISO 2.5KV GEN PURP 16SOIC | Categorie: | Digitale isolatoren |
| Familie: | Digitale isolatoren | Reeks: | iCoupler® |
| Part Status | Active |
|---|---|
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 3 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
