Productdetails:
|

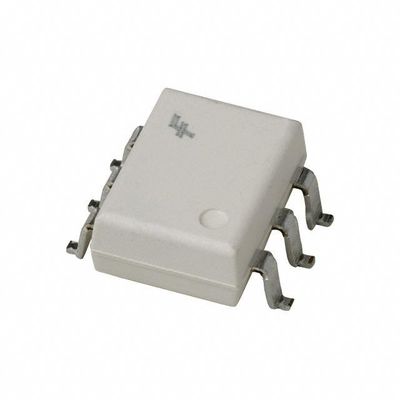

| Artikelnummer: | H11L2SM | Fabrikant: | Fairchild/ON Halfgeleider |
|---|---|---|---|
| Beschrijving: | OPTOISO 4.17KV OPN COLL 6SMD | Categorie: | Optoisolators - Logicaoutput |
| Familie: | Optoisolators - Logicaoutput |
| Part Status | Active |
|---|---|
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 4170Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50mA |
| Data Rate | 1MHz |
| Propagation Delay tpLH / tpHL (Max) | 4µs, 4µs |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 3 V ~ 15 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
