Productdetails:
|
| Artikelnummer: | CNY64AGRST | Fabrikant: | Opto Afdeling van de Vishayhalfgeleider |
|---|---|---|---|

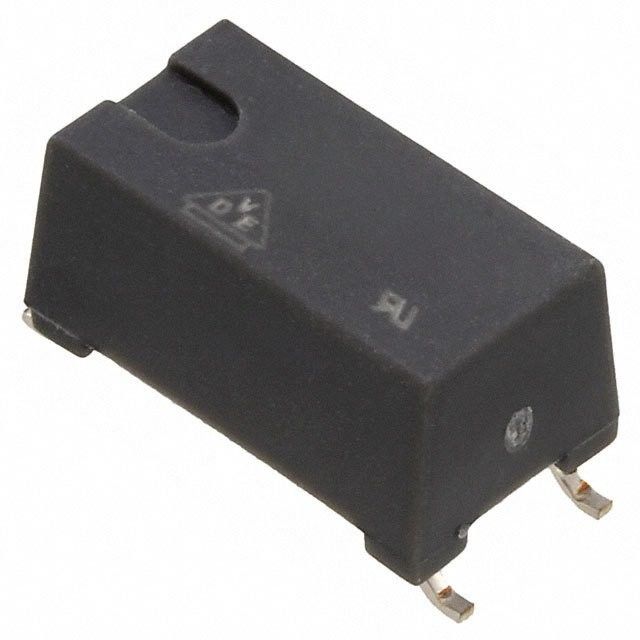

| Beschrijving: | OPTOISOLATOR 8.2KV TRANS 4-SMD | Categorie: | Optoisolators - Transistor, Photovoltaic Output |
| Familie: | Optoisolators - Transistor, Photovoltaic Output |
| Part Status | Active |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 8200Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 300% @ 5mA |
| Turn On / Turn Off Time (Typ) | 5µs, 3µs |
| Rise / Fall Time (Typ) | 2.4µs, 2.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 32V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.32V |
| Current - DC Forward (If) (Max) | 75mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
