Productdetails:
|

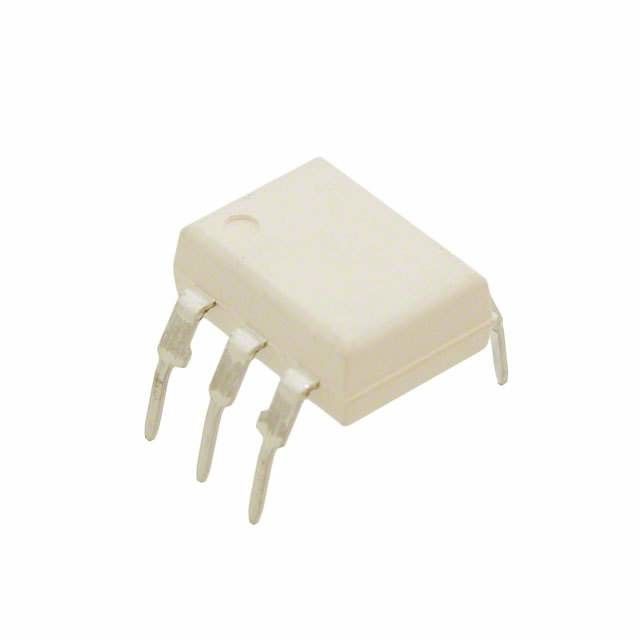

| Artikelnummer: | MOC3020TVM | Fabrikant: | Fairchild/ON Halfgeleider |
|---|---|---|---|
| Beschrijving: | TRIAC 6DIP VAN OPTOISOLATOR 4.17KV | Categorie: | Optoisolators - Triac, SCR Output |
| Familie: | Optoisolators - Triac, SCR Output |
| Part Status | Active |
|---|---|
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 4170Vrms |
| Voltage - Off State | 400V |
| Static dV/dt (Min) | - |
| Current - LED Trigger (Ift) (Max) | 30mA |
| Current - On State (It (RMS)) (Max) | - |
| Current - Hold (Ih) | 100µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.400", 10.16mm) |
| Supplier Device Package | 6-DIP |
| Approvals | IEC/EN/DIN, UL |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
